Ptoduct Specification
※4-36W led driver
※Wided lnput voltage range
※Constant current
※Seclusion design
※Constant current model,constant voltage model
Short circuit,over power,over voltage protection
※Certifiation:TUV,CB,CE,SAA,CQC
※Input voltage:100-240V Ac±5%
※Rated lnput voltage:90-264V AC 63Hz-47Hz
※Output voltage:12-85V
※Output current:900mA max
※ Working temperatuer:－40℃~－70℃
※Withstand voltange testing:input-output3750V AC,30 seconds
Technial parameters
|
Model
|
Power
|
Size
|
Output voltage
|
Current
|
Toerance
|
Effcieny
|
|
BEST-JK0407PF
|
(4－7)×1W
|
94×45×28
|
DC12-27v
|
300mA
|
±5%
|
>86%
|
|
BEST-JK0812PF
|
(8－12)×1W
|
94×45×28
|
DC24-45v
|
300mA
|
±5%
|
>87%
|
|
BEST-JK1216PF
|
(12－16)×1W
|
115×45×28
|
DC36-60v
|
300mA
|
±5%
|
>88%
|
|
BEST-JK1620PF
|
(16－20)×1W
|
115×45×28
|
DC48-76v
|
300mA
|
±5%
|
>88%
|
|
BEST-JK2025PF
|
(20－25)×1W
|
140×45×28
|
DC65-85v
|
300mA
|
±5%
|
>88%
|
|
BEST-JK0612PFB
|
(2－4)×3W
|
94×45×28
|
DC6-12v
|
600mA
|
±5%
|
>86%
|
|

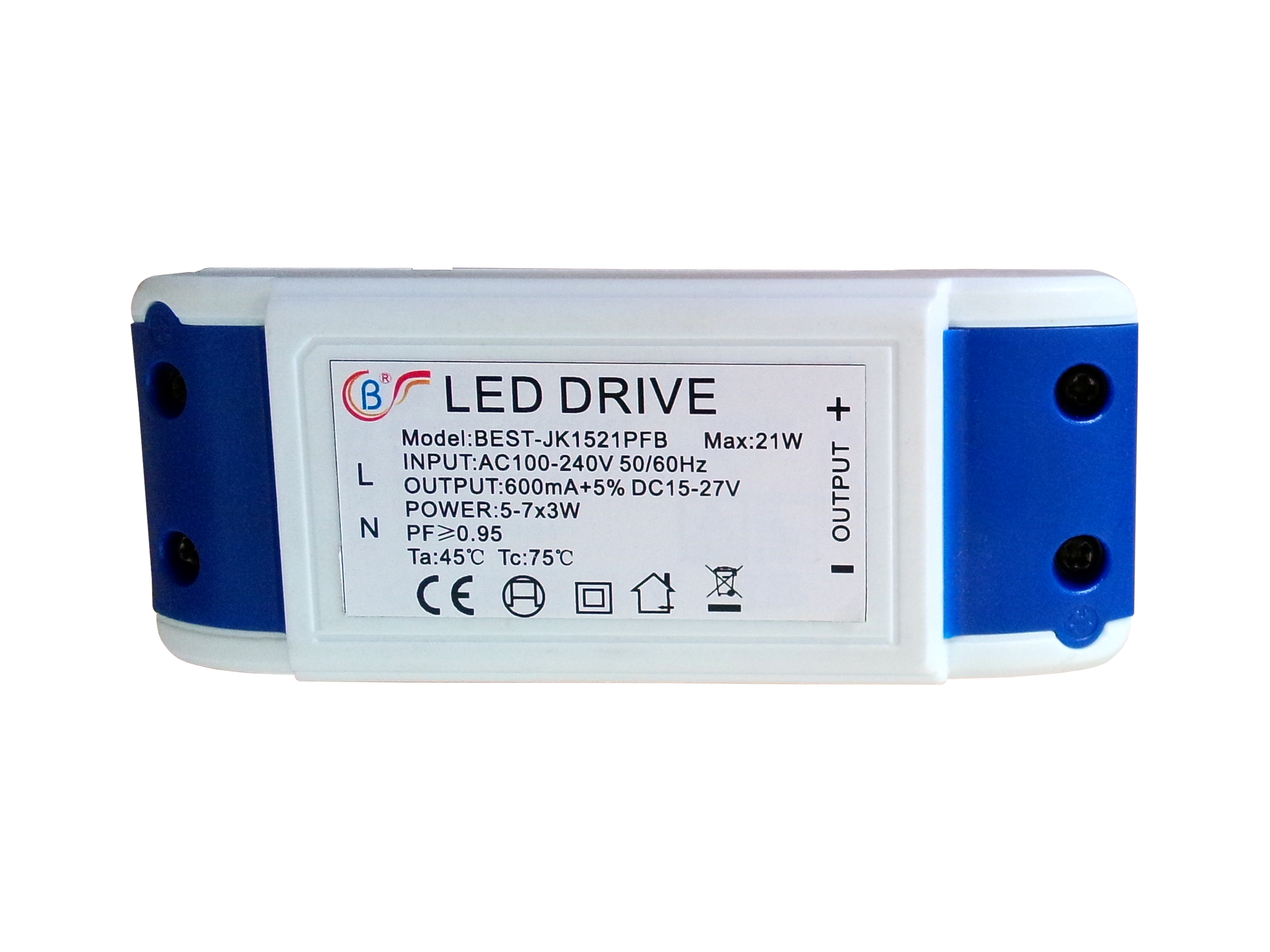

BEST-JK1521PFB
|
(5－7)×3W
|
115×45×28
|
DC15-27v
|
600mA
|
±5%
|
>87%
|
|
BEST-JK2436PFB
|
(8－12)×3W
|
140×45×28
|
DC24-45v
|
600mA
|
±5%
|
>88%
|
|
BEST-JK3036PFB
|
10串3并
|
140×45×48
|
DC24-40v
|
900mA
|
±5%
|
>89%
|
|
